Setting Left or Right Channel on Aurender S5W

1. Ensure the Aurender S5W speakers are turned on and already paired. If not, please refer to the pairing guide below and complete that process before continuing.

- Paring S5W with USB dongle(Transmitter)

2. After the initial pairing of your Aurender S5W speakers, both units are by default set to play the Left channel. No additional settings are required if you want to use a speaker for the Left channel.

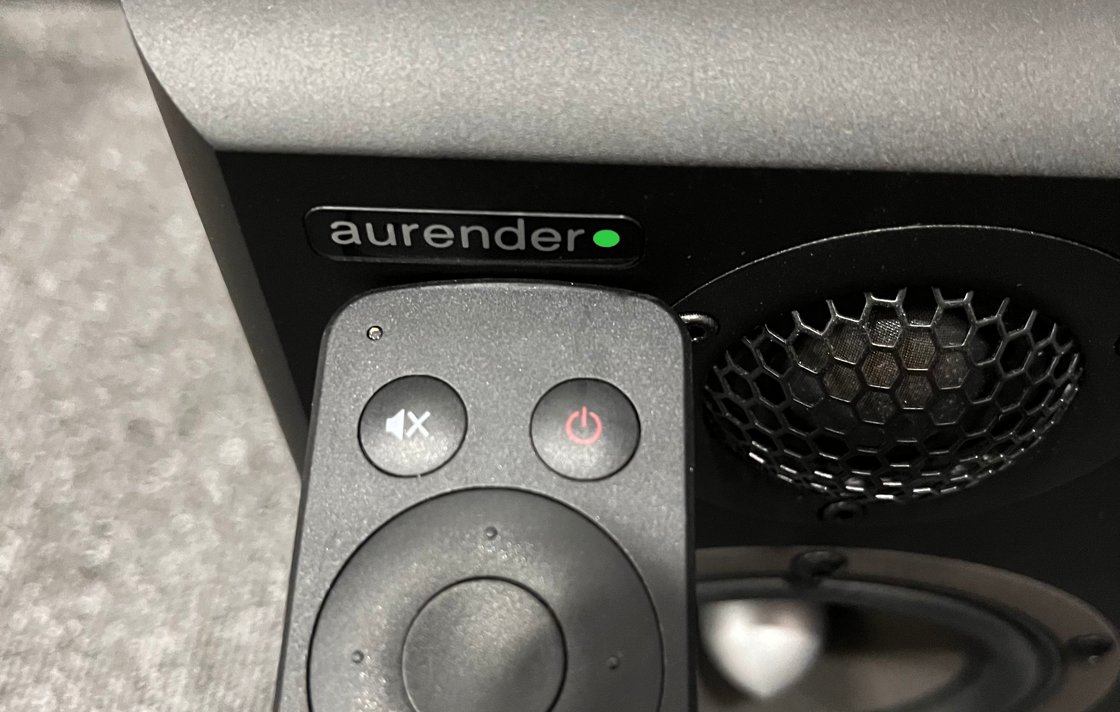

3. To set a speaker to the Right channel, first ensure that the S5W unit (which is set to the Left channel by default) is turned off. This prevents accidentally setting both units to the Right channel. Next, bring the remote control close to the Aurender logo on the speaker you wish to designate as the Right channel.

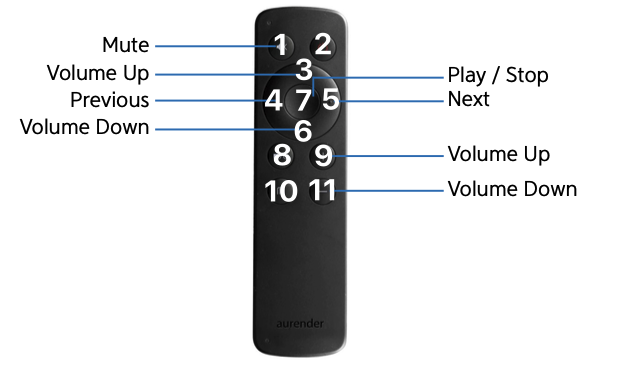

4. While holding the remote control close to the logo, press the buttons on the remote in the following order, ensuring to leave a 0.5-second interval between each button press: 8 → 10 → 9 → 11 → 5. If you look closely at the LED lamp, you'll notice it blinks with each button press, indicating that the signal is being received by the unit.

5. Once the sequence is completed successfully, the LED on the speaker will blink (either green or amber, depending on its stereo or mono mode), before the speaker automatically re-pairs itself.

6. To assign a speaker as the Left channel again, you need to repeat steps 2 and 3, but with a different button sequence on the remote: 8 → 10 → 9 → 11 → 4.

7. If the LED doesn't show a steady green or amber light after the speaker attempts to re-pair itself, please try again. Ensure you're pressing the buttons on the remote control with 0.5-second intervals. Once the setting is successful and the LED displays the appropriate color, turn on both S5W units and enjoy your audio experience. If you encounter any issues, please send a support email to our customer service for further assistance.
