Setting Up Volume Curve Control on the Aurender S5W

1. Ensure the Aurender S5W speakers are turned on and already paired. If not, please refer to the pairing guide below and complete that process before continuing.

- Paring S5W with USB dongle(Transmitter)

2. Before starting the setting process, ensure the volume on your PC or source device is set to a very low level to prevent unexpectedly loud audio output.

3. For Windows/Android volume curve:

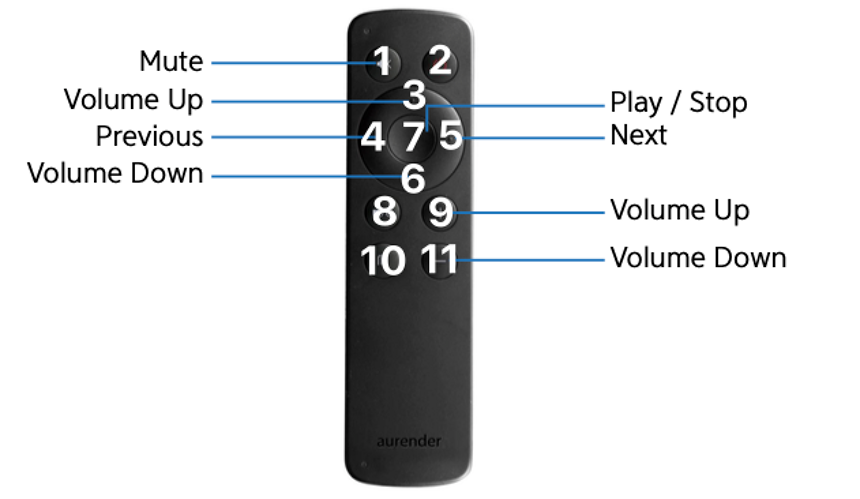

Hold down the #8 button on your remote control until the LED lamp next to the Aurender logo starts blinking green. This green blinking indicates that the device is set for the Windows/Android volume curve.

4. For Mac/iPhone volume curve:

Hold down the #10 button on your remote control until the LED lamp next to the Aurender logo starts blinking amber. This amber blinking indicates that the device is set for the Mac/iPhone volume curve.

5. Once you've pressed the button, wait for the blinking to stop. Once the pairing is successful, the LED will display a solid color (either green or amber), depending on the stereo or mono mode setting.

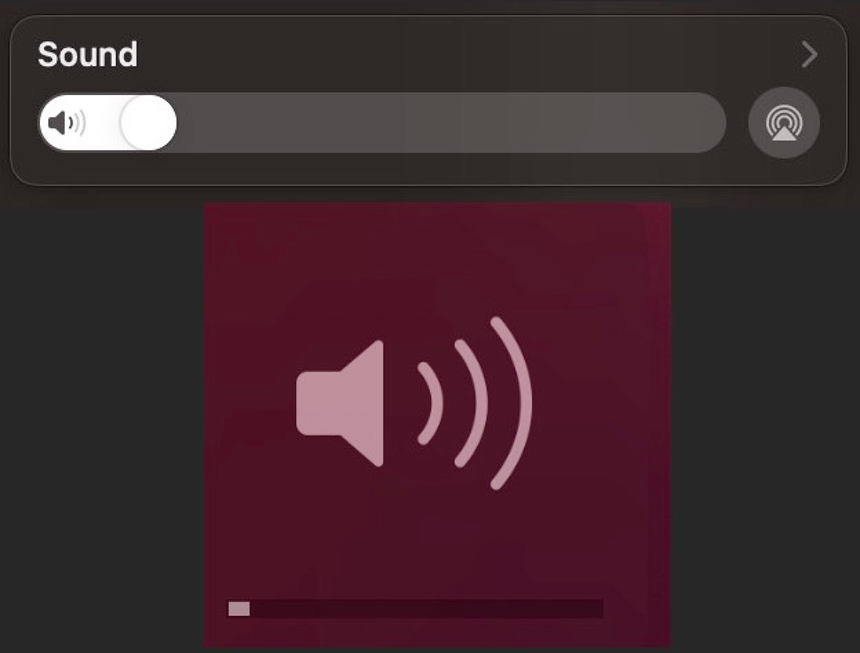

Upon confirming a successful pairing, ensure the volume on the output source is set very low. Gradually increase the volume to your desired level, adjusting slowly to ensure the sound output is at a comfortable level.

6. If you want information about setting up mono or stereo mode, please refer to this link.
